DOLPHIN INFORM SLIMLINE StrataPlate WALL TAP

DS112

DOLPHIN INFORM SLIMLINE StrataPlate WALL TAP

DS112

Details

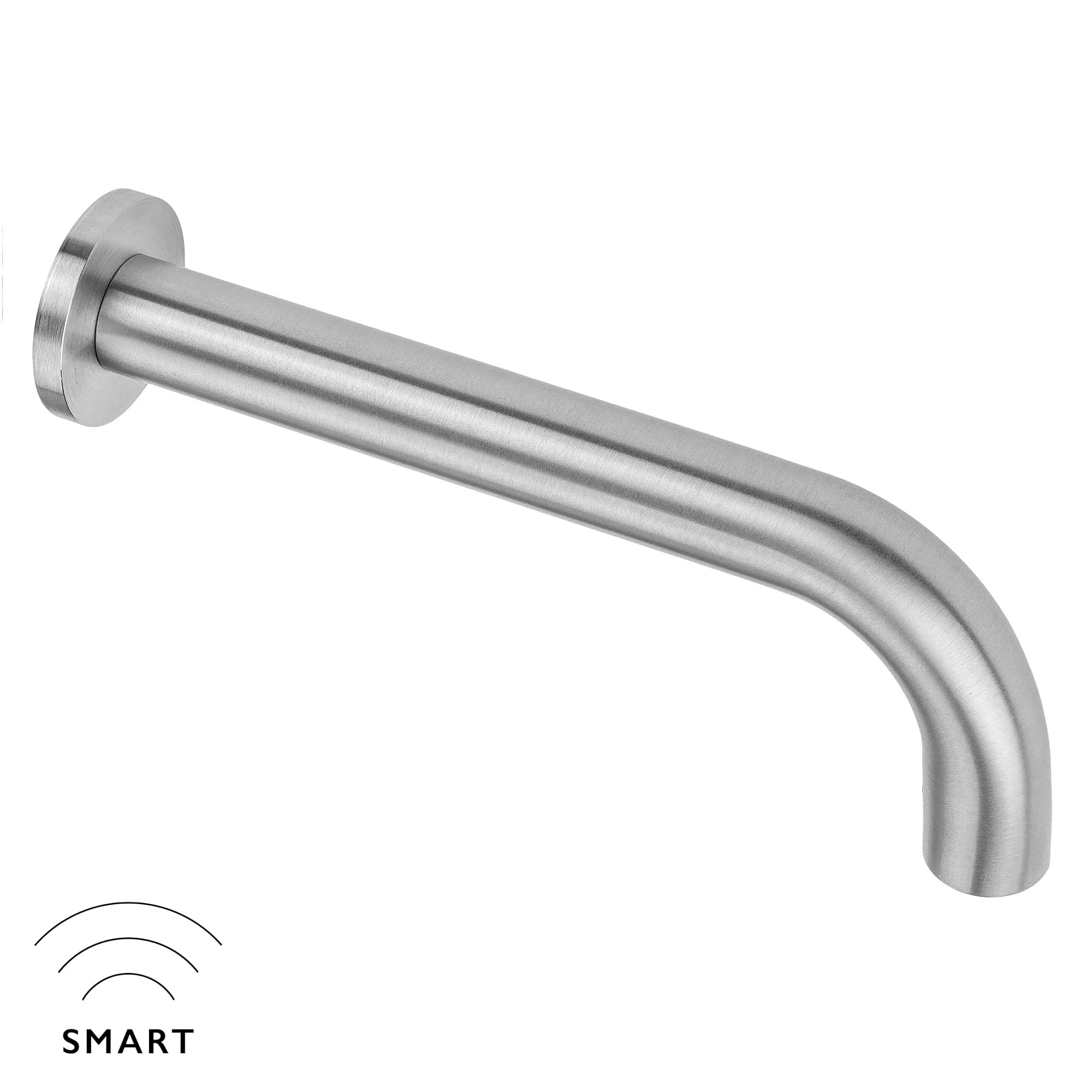

  • Self-monitoring analysis and recording technology (smart) allows the Facilities Manager to connect point to point via the Dolphin Inform App when used with the optional Bluetooth Adaptor  (Sold separately -Order product code 25148 ) -  Watch our overview video

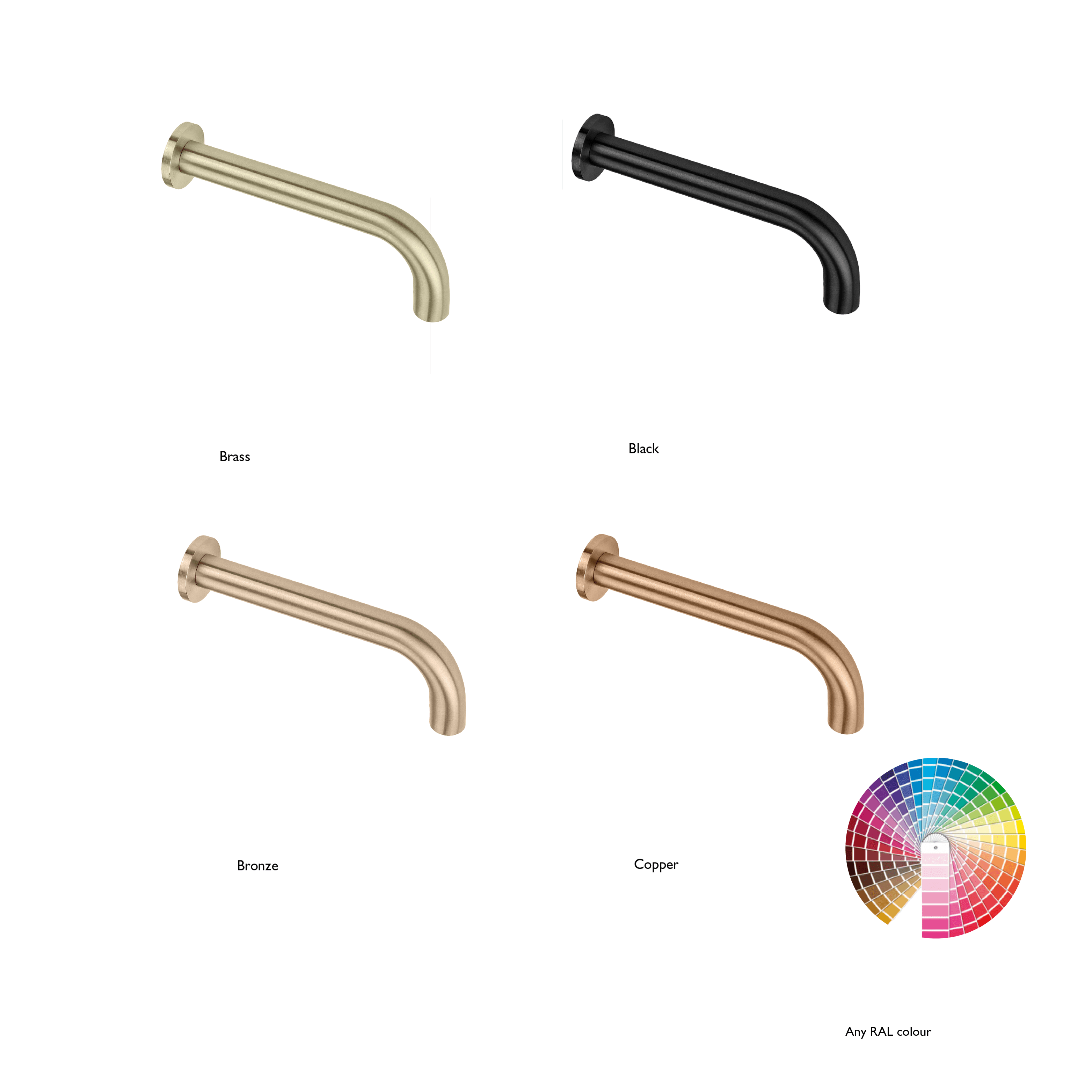

  • Special Finishes: Ceramic, PVD, PPC in all RAL colours, Mirror Polish or Brushed Satin Stainless Steel
  • Up to 70% water savings
  • BREEAM, SKA, LEED and WELL compliant, and KUKreg4 approved
  • Max nominal flow rate of 3.5LPM (between 1 and 6 bar) as standard, and is also available with 4, 3, 2, 1.75, and 1LPM flow rates on special request
  • Thru-panel mounted DS111 also available
  • Codes are created by by using the matrix seen in image 5
  • Manufactured from high-quality, highly durable 1.4401 (316) Marine grade stainless steel
  • 90Âş spout
  • Designed to be front mounted for when rear access installation is not possible
  • 200mm clearance from the countertop is acceptable
  • Water supply: single inlet cold or pre-mixed – a TMV2 or TMV3 thermostatic mixing valve is recommended for premixed applications
  • Comes as standard with hygiene flush/line purge feature to protect against legionella
  • Maximum operating water temperature - 60°C
  • Nominal current: Less than 1mA (Less than 25mA with Bluetooth)
  • Nominal power: Less than 1W
  • Security time can be adjusted via the App – default 20 seconds (60 seconds max)
  • IP68 connector
  • Power Source: Plug-in 9 Volt transformers

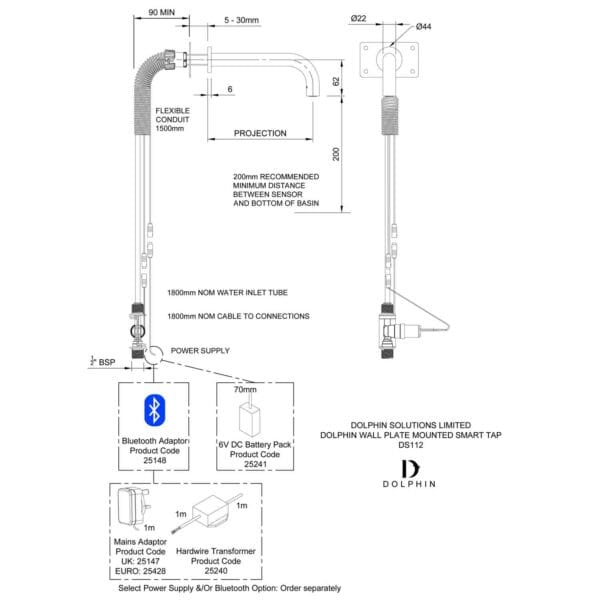

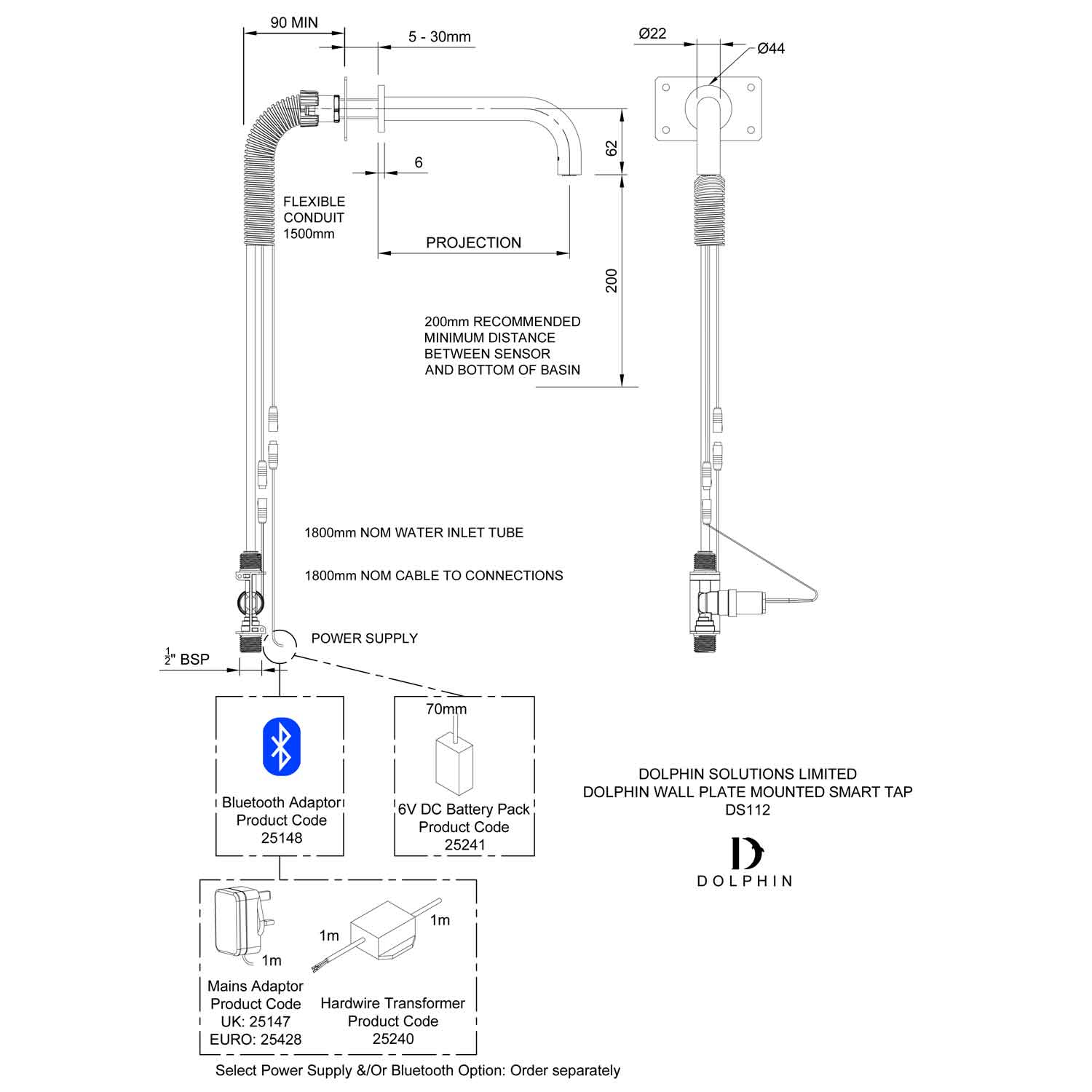

  • Recommended minimum distance between the sensor and the bottom of basin = 200mm
  • Comes with laminar flow as standard to reduce splashing
  • Available with an Offset Adaptor fitting for back-to-back installation
  • This tap is a Registered Design (UK)
Read moreRead less

150mm
175mm
200mm
225mm

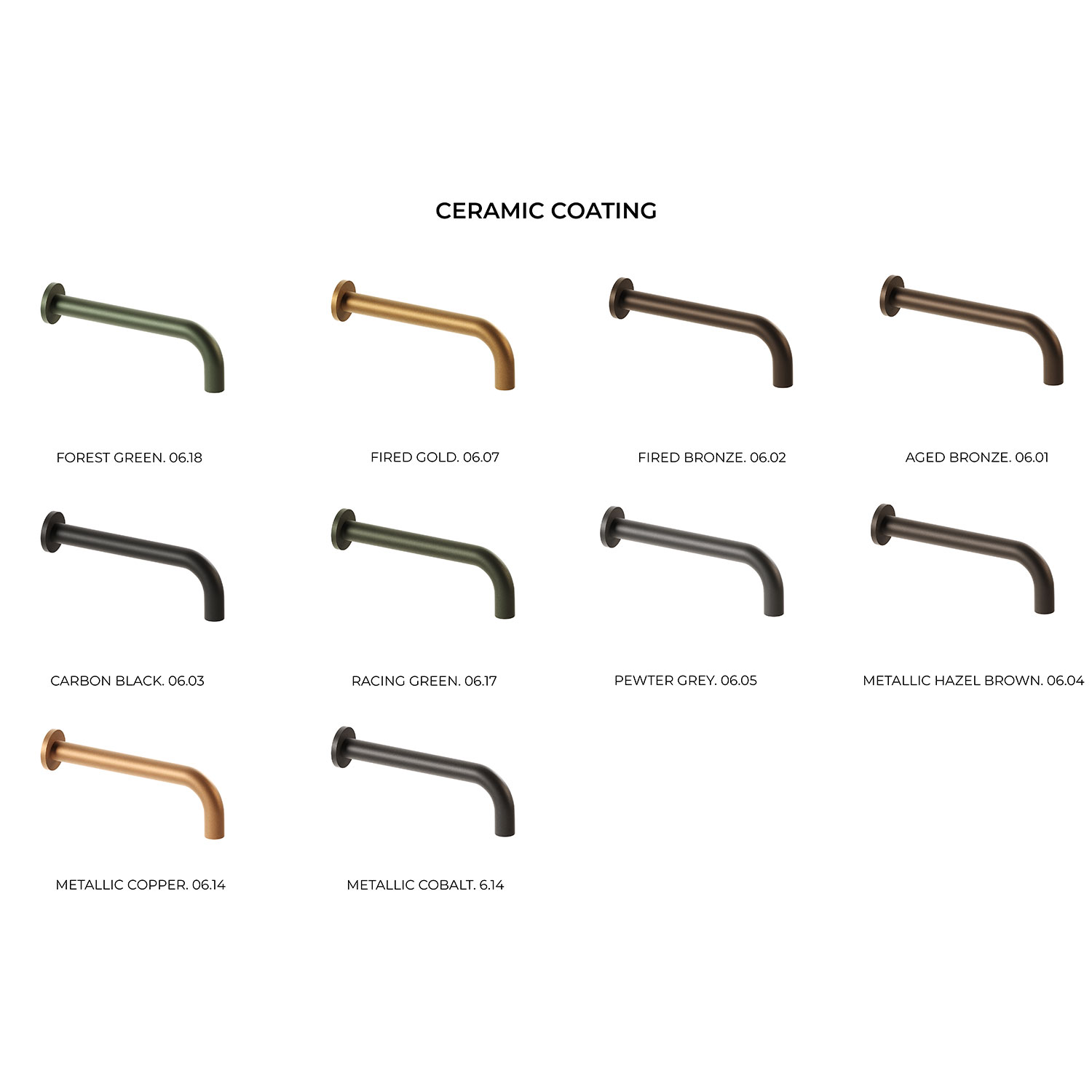

Ceramic Coating
Powder Coating
PVD Finish
Satin Brushed Stainless Steel
Mirror Polish Stainless Steel
Battery
Hard wired transformer
Plug transformer
Clear filters
Product Code: DS112

Request a quotation here

or call: 01424 202224
