DOLPHIN INFORM STRAIGHT STRATAPLATE WALL TAP
DS122DOLPHIN INFORM STRAIGHT STRATAPLATE WALL TAP
DS122Details

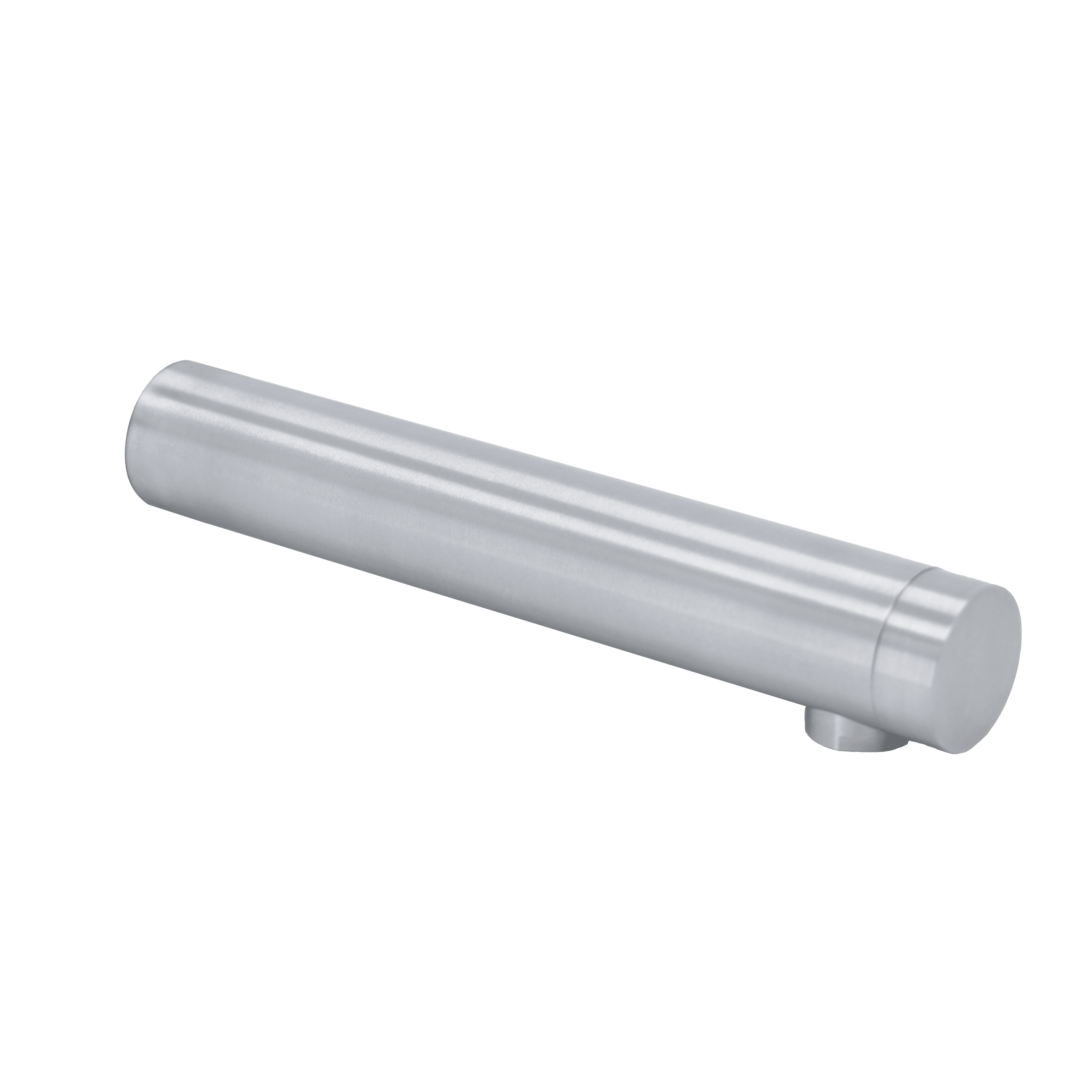

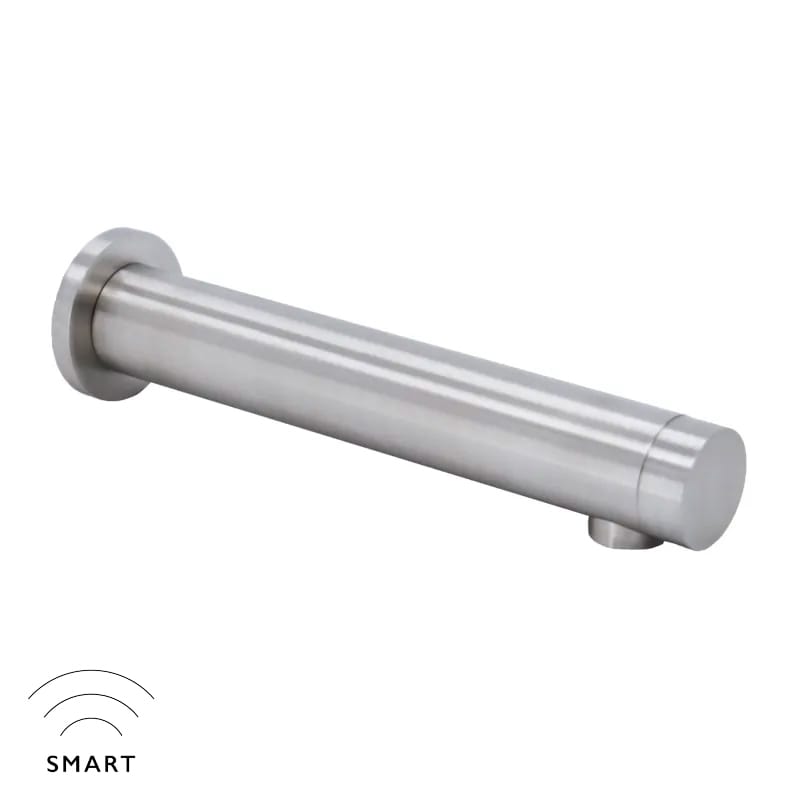

- Dolphin Wall Plate Mounted InForm Straight Body Tap
- Manufactured from high-quality, highly durable 1.4401 (316) Marine grade stainless steel.
- Self-monitoring analysis and recording technology (smart) allows the Facilities Manager to connect point to point via the Dolphin InForm App when used with the optional Bluetooth Adaptor (Sold separately -Order product code 25148 )
- Infrared Touch Free Tap – for ultimate hygiene – prevents cross contamination - sensor mounted in end of spout
- Designed to be front mounted for when rear access installation is not possible
- Max nominal flow rate of 3.5LPM (between 1 and 6 bar) as standard, and is also available with 1.25LPM and 1.75LPM flow rates on special request
- KUKreg4 compliant and WRAS certified

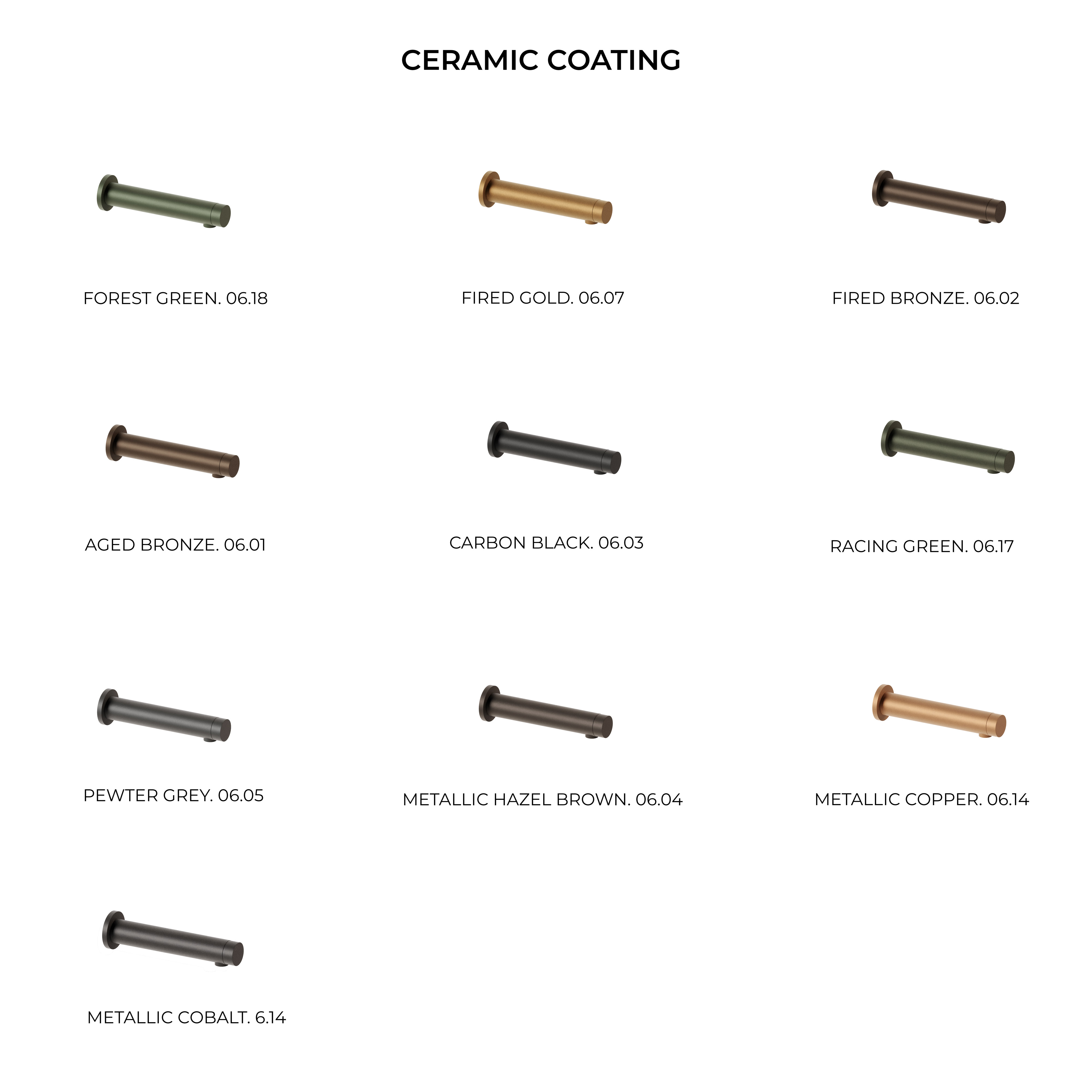

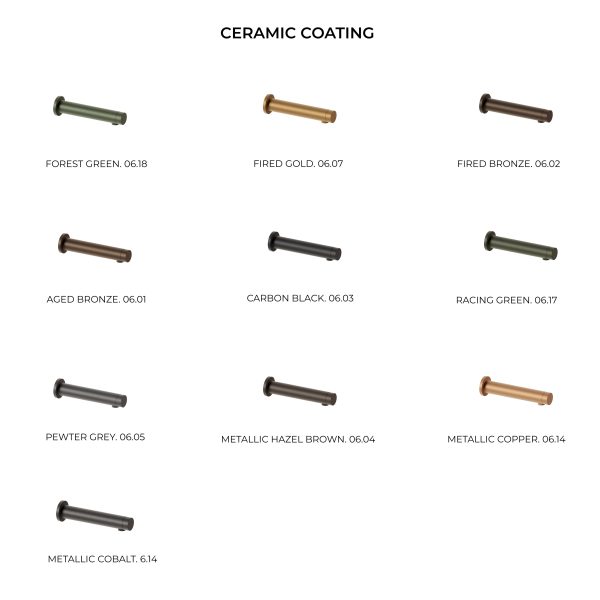

- Also available in a PVD finish, Ceramic or with Powder coating in any RAL colour (enquire for more detail)
- Thru-panel mounted DS121 also available
- Codes are created by by using the matrix seen in image 4
- Water supply: single inlet cold or pre-mixed – a TMV2 or TMV3 thermostatic mixing valve is recommended for premixed applications
- Maximum operating water temperature - 60°C
- Nominal current: Less than 1mA (Less then 25mA with Bluetooth)
- 200mm clearance from the countertop is acceptable
- Nominal power: Less than 1W
- Comes as standard with hygiene flush/line purge feature to protect against legionella
- Security time can be adjusted via the App – default 20 seconds (60 seconds max)
- IP68 connector
- Power Source: Plug-in 9 Volt transformers

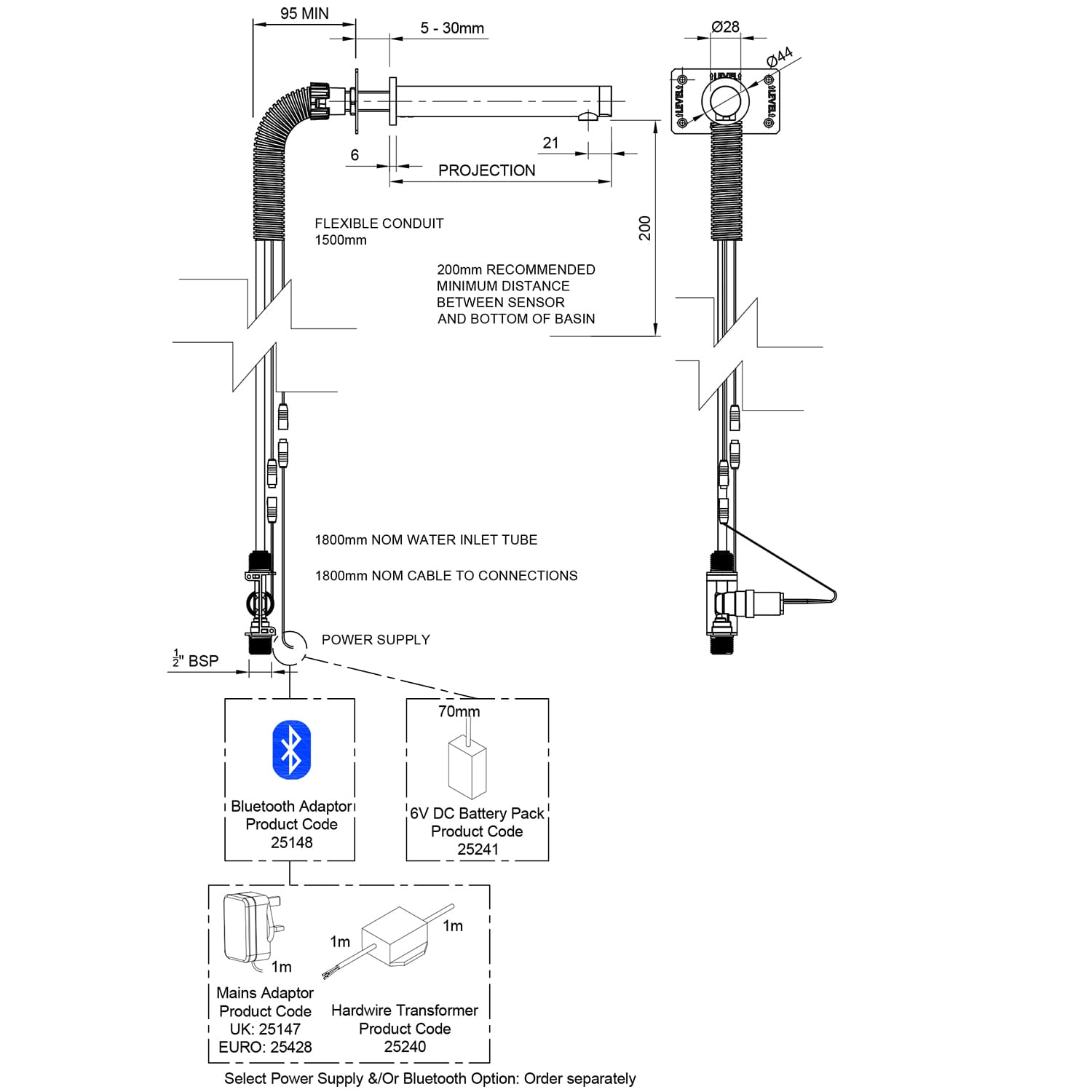

- Recommended minimum distance between sensor and the bottom of basin = 200mm
- Available with laminar flow instead of the standard aerator to reduce splashing
- Available with an Offset Adaptor fitting for back-to-back installation
- Distance from the splashback/final wall finish to the centre of the water column for the different tap projections; 150mm projection = 129mm, 175mm projection = 154mm, 200mm projection = 175mm, 225mm projection = 204mm, 275mm projection = 254mm
- Available in other lengths to special request
- This tap is a Registered Design (UK)
