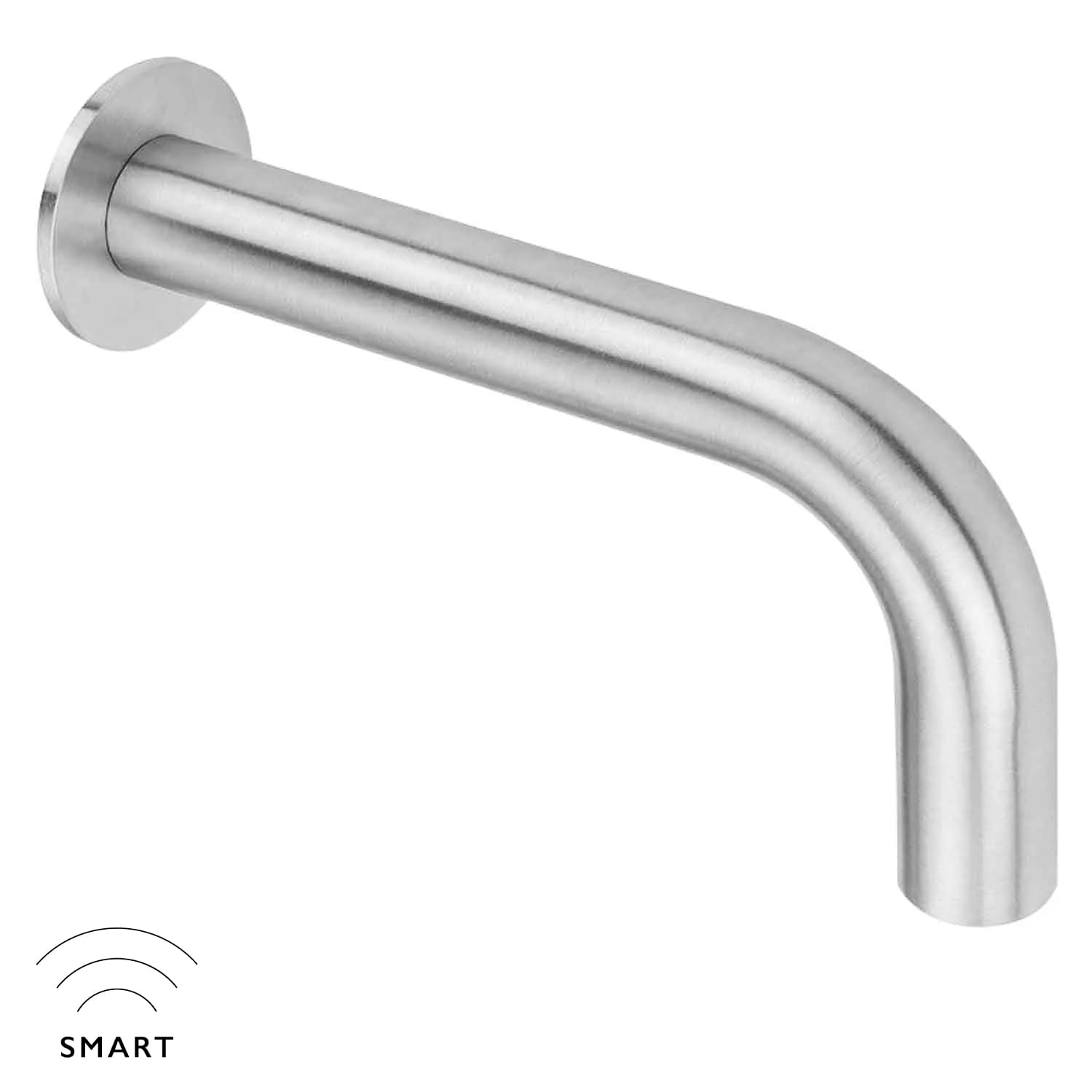

DOLPHIN INFORM STRATAPLATE WALL TAP

DS102

DS102

Self-monitoring analysis and recording technology (smart) allows the Facilities Manager to connect point to point via the Dolphin Inform App when used with the optional Bluetooth Adaptor (Sold separately -Order product code 25148 )
Special Finishes: Ceramic, PVD, PPC in all RAL colours, Mirror Polish or Brushed Satin Stainless Steel
Up to 70% water savings
BREEAM, SKA, LEED, WELL, WRAS, DOC M compliant
Max nominal flow rate of 3.5LPM (between 1 and 6 bar) as standard, and is also available with 1.25LPM and 1.75LPM flow rates on special request
Thru-panel mounted DS101 also available

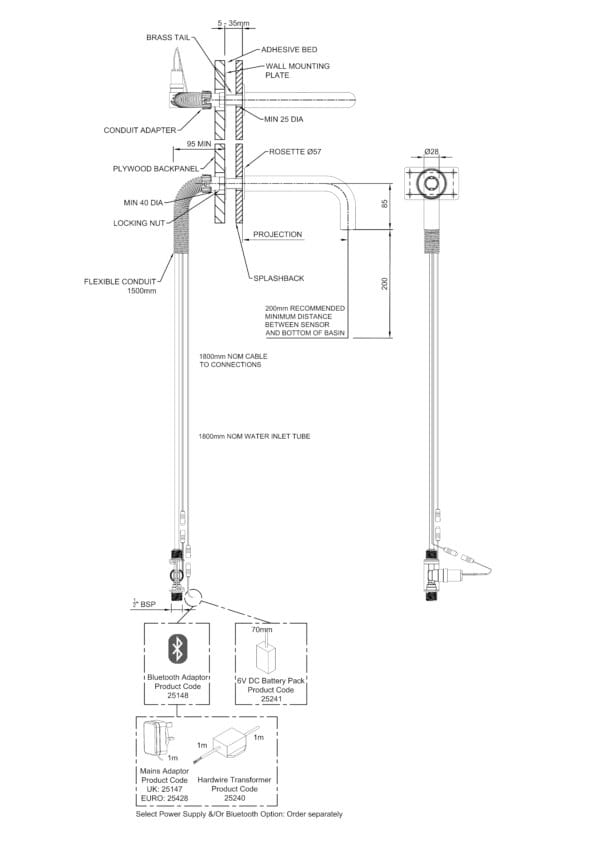

Codes are created by by using the matrix seen in image 4

Manufactured from cast 316 grade stainless steel
6 different lengths available - projecting 130mm, 150mm, 180mm 230mm, 280mm or 330mm from outlet
200mm clearance from the countertop is acceptable
Comes as standard with hygiene flush/line purge feature to protect against legionella
Water Supply: Single inlet cold or pre-mixed – a TMV2 or TMV3 thermostatic mixing valve is recommended for premixed applications
Plug-in 9 Volt transformers or 9 Volt Battery (with low battery warning)
Available with laminar flow instead of the standard aerator to reduce splashing
Available with an Offset Adaptor fitting for back-to-back installation
This tap is a Registered Design (UK)
Spare sensor available separately - 25146

Finish:	Ceramic Coating Powder Coating PVD Finish Satin Brushed Stainless Steel Mirror Polish Stainless Steel
Power:	Battery Hard wired transformer Plug transformer
Length:	130mm 150mm 180mm 230mm 280mm Clear filters
