DOLPHIN INFORM SLIMLINE WALL TAP – THRU PANEL
DS111DOLPHIN INFORM SLIMLINE WALL TAP – THRU PANEL
DS111Details
- Self-monitoring analysis and recording technology (smart) allows the Facilities Manager to connect point to point via the Dolphin Inform App when used with the optional Bluetooth Adaptor (Sold separately -Order product code 25148 )
- Special Finishes: Ceramic, PVD, PPC in all RAL colours, Mirror Polish or Brushed Satin Stainless Steel
- Up to 70% water savings
- BREEAM, SKA, LEED and WELL compliant, and KUKreg4 approved
- Max nominal flow rate of 3.5LPM (between 1 and 6 bar) as standard, and is also available with 4, 3, 2, 1.75, and 1LPM flow rates on special request
- Manufactured from high-quality, highly durable 1.4401 (316) Marine grade stainless steel
- 90º spout

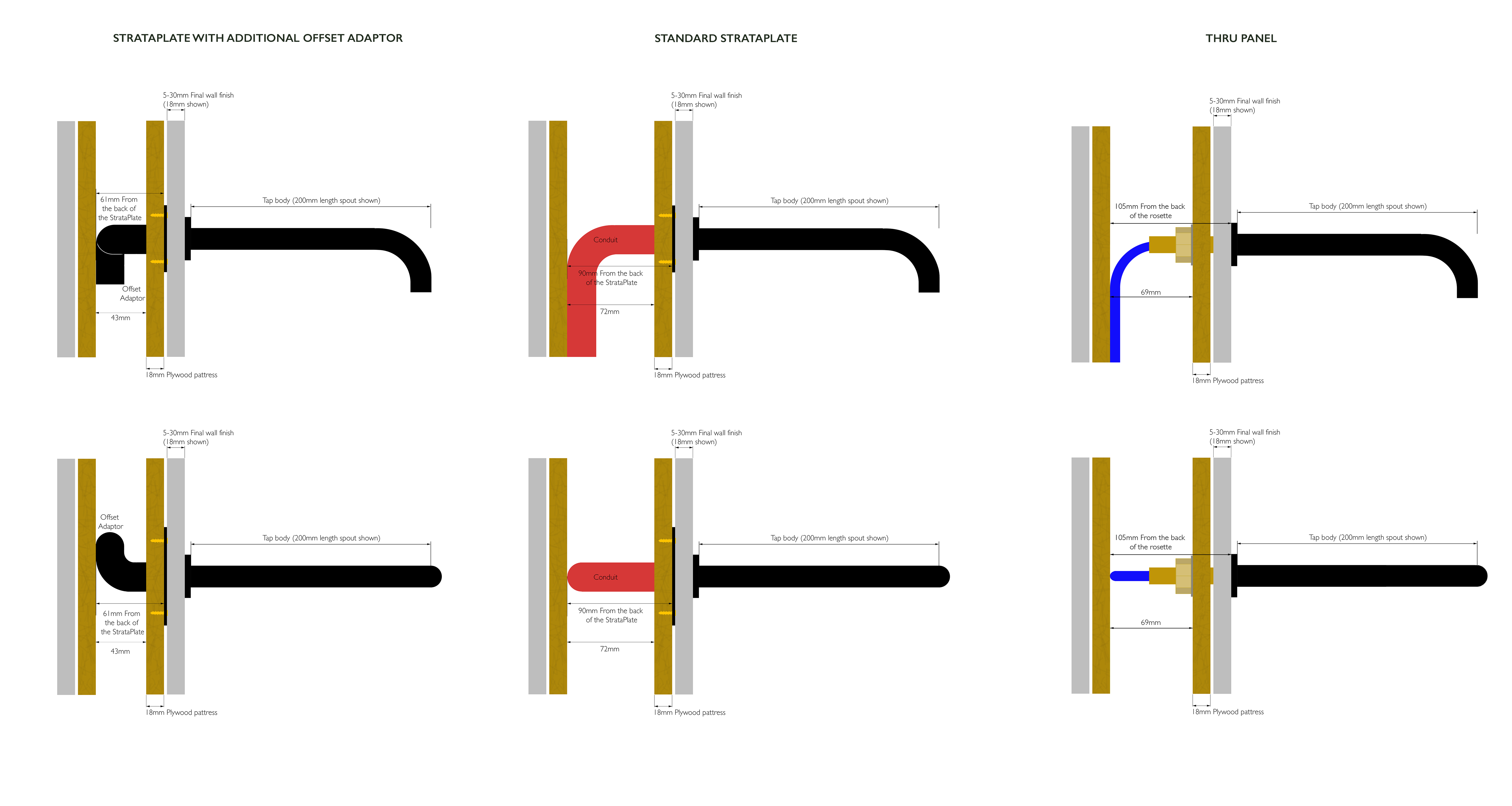

- Designed to be mounted through an IPS panel*
- Water supply: single inlet cold or pre-mixed – a TMV2 or TMV3 thermostatic mixing valve is recommended for premixed applications
- Comes as standard with hygiene flush/line purge feature to protect against legionella
- Maximum operating water temperature - 60°C
- Nominal current: Less than 1mA (Less than 25mA with Bluetooth)
- Nominal power: Less than 1W
- Security time can be adjusted via the App – default 20 seconds (60 seconds max)
- IP68 connector
- Power Source: Plug-in 9 Volt transformers

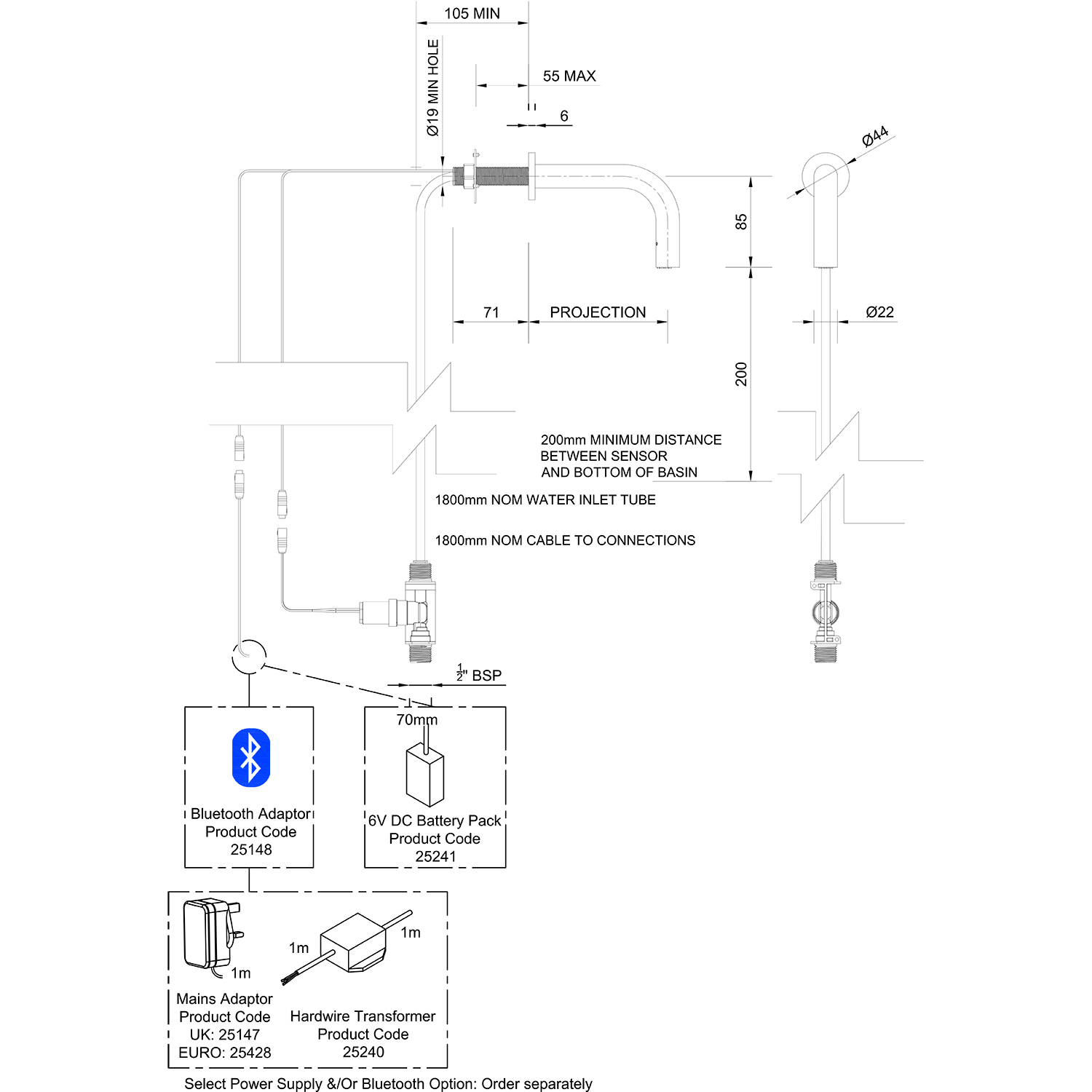

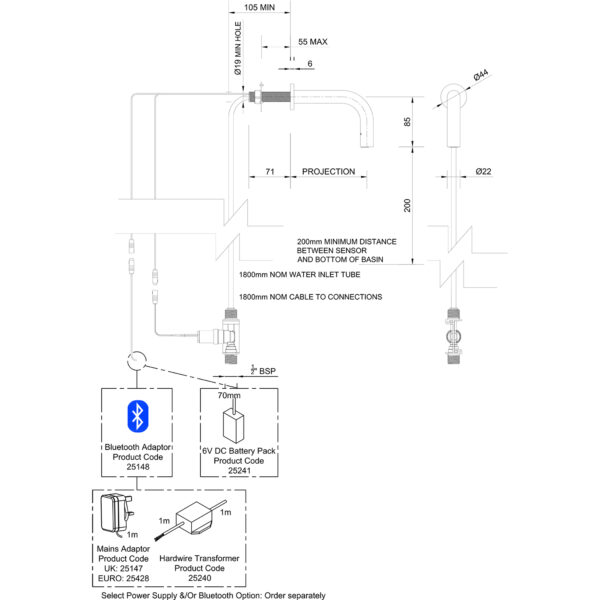

- Recommended minimum distance between the sensor and the bottom of basin = 200mm
- Comes with laminar flow as standard to reduce splashing
- This tap is a Registered Design (UK)
Read moreRead less
