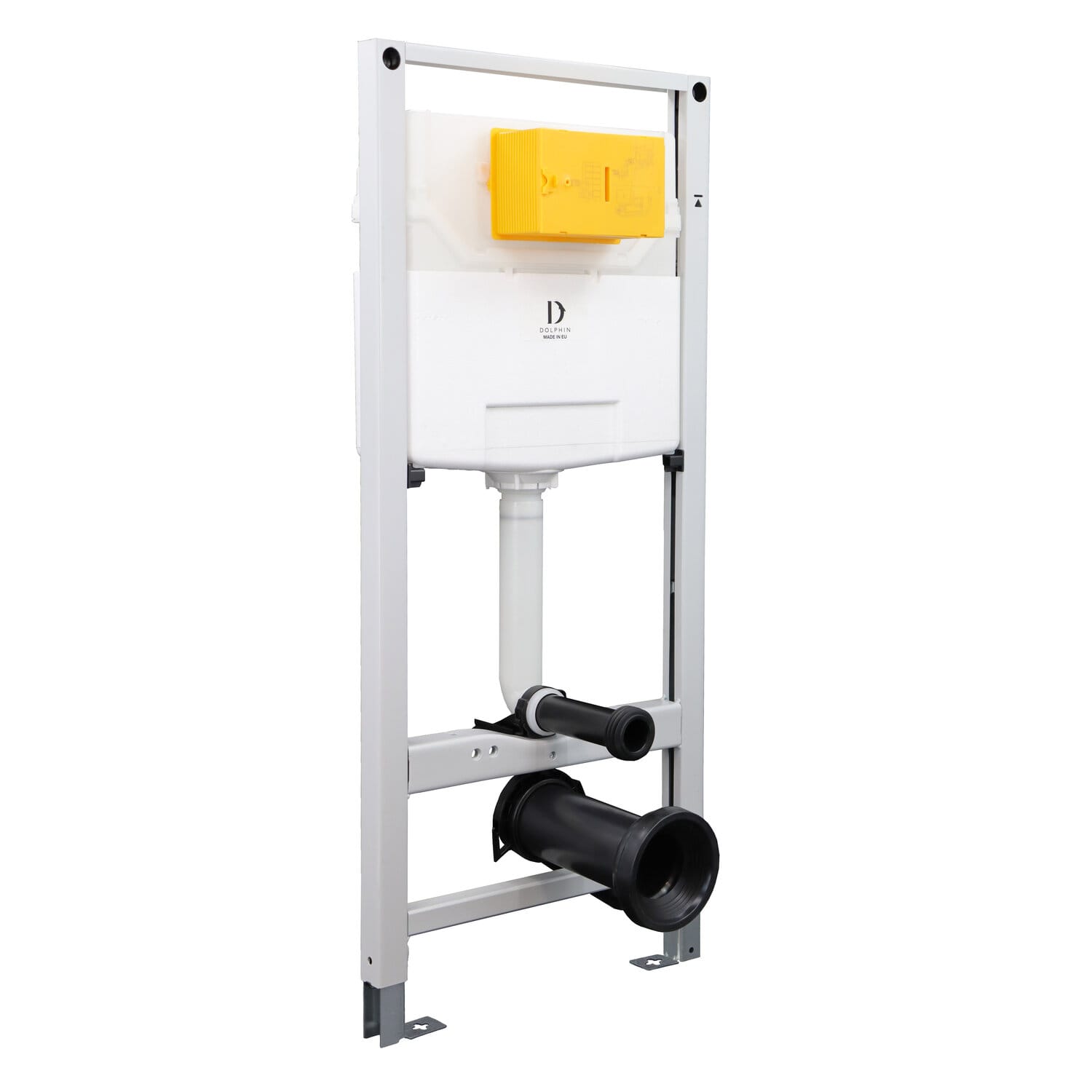

DOLPHIN BLUE 126MM PNEUMATIC CISTERN – 1150MM FRAME

DB5511.P

DB5511.P

Concealed WC Cistern and Frame
Watch our installation video
See flush plate matrix for minimum wall build up required for compatible flush plate and cistern combination
Minimum of 45mm wall build up
Designed for use with our DB5550.P Flush plate
Compliant with DEFRA Interim agreement when used with our DC2005 and DC1300 toilet pans. Not compatible with our DC2006 or DB590

Working pressure: 0.1 to 16 bar
WRAS approved inlet valve
AUK1 Backflow arrangement
EN14055 Class two compliant
Designed for use with our DB5550.P Flush plate
Compliant with DEFRA Interim agreement when used with our DC2005 and DC1300 toilet pans. Not compatible with our DC2006 or DB590
In painted profile corrosion resistant
Minimum thickness of 126mm and adjustable up to 170mm
Height regulation of the adjustable floor brackets (0-200 mm);
Depth adjustable outlet bend
Tested for 400kg load
Dual flush in-wall cistern compatible with dual flush actuators 6/3 litres (adjustable to 4.5/3 or 4/2.5)
126mm thickness
Pneumatic actuation
Equipped with delayed refilling inlet valve, (can save 9 litres of water per day) and according to BS1212 4:2016
Resistance to atmospheric humidity (Hr <90%).
Polypropylene (PP) cistern highly resistant and inalterable to thermal stress
Supplied with anti-condensation lining
Pre-assembled structure for installation in front of masonry wall and finish in light wall, plasterboard wall and technical support rail for light wall
Opening in the final wall finish should be cut to the size of the flush plate, not to the size of the cistern opening
