PRESTIGE DOC M WC PACK – BACK TO WALL

P10010-1000-FB

P10010-1000-FB

Prestige - Back to wall WC
Formerly DP6601

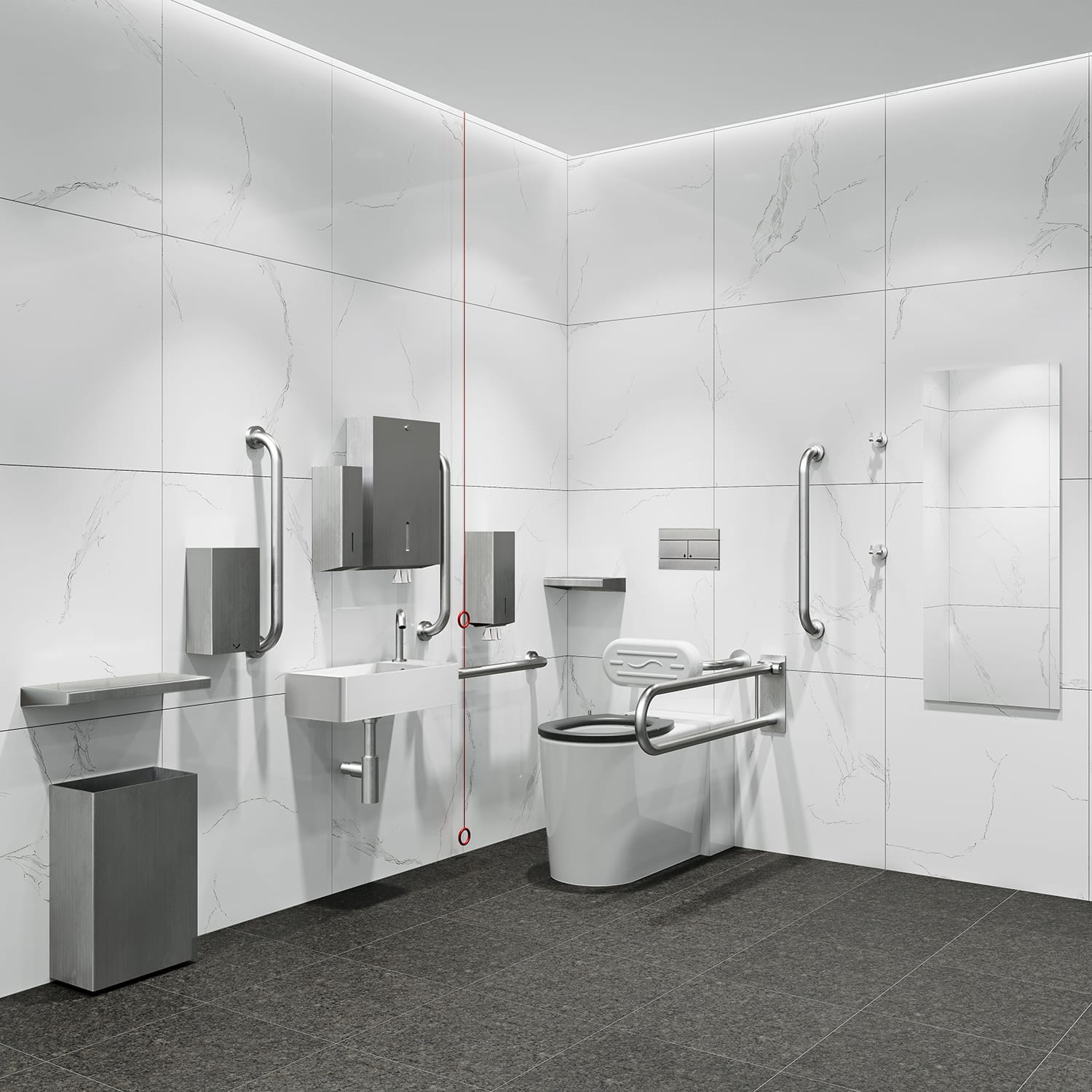

Complete set of products and components to install an accessible toilet and washroom
Options: Right hand or left hand wheelchair transfer
TMV3, WRAS, DOC M compliant

Superior quality and timeless design for prestigious washrooms
High quality satin stainless steel WC pack
Set is delivered in one package for easy installation
Includes handmade Prestige grab rails and accessories for ultimate durability
White toilet seat also available as an option - please contact the team for more information
To assist blind or partially sighted persons in navigating the washroom there should be a contrast difference of 30 between the LRV (Light Reflective Value) of fixtures/fittings and surrounding surfaces as well as between floors, walls, doors and ceilings. Stainless steel fittings have an average LRV rating of between 39 and 45. Contact the Dolphin Technical Team for assistance.

P10010-1000-FB Pack contains:

DS213.150.150 Tap x1
AL0220 TMV3 Thermostatic Mixing Valve x1
DC34.5025 Basin x1
DB784.1 Waste Trap x1
DB793S Waste Grate x1
DP2114 Toilet Tissue Dispenser x1
DP7504 Toilet Brush x1
DP7103 Coat Hooks x2
DP1106E Soap Dispenser x1
DP3106 Paper Towel Dispenser x1
BC2008 Hand Dryer x1
DP5104 Waste Bin x1
BC754 400mm shelf x1
BC751 200mm shelf x1
BC5083-121 Alarm Pull Cord x1
DP6103 Grab Bar 600 mm x4
DP6102 Grab Bar 500 mm x1
DP670300 Drop Down Hinged Support Rail x1
BC5083-07-BLK Back Rest x1
DB5510.M Mechanical Cistern x1
DB5560.M.1 Flush Plate x1 (not touch free)
DB590 Toilet Pan x1
DB591-GRY Toilet Seat Ring - Grey Contrasting x1 (White WC seat available, but can cause noncompliance as it does not colour contrast with the pan)
BC5083-101 Mirror 1000mm x 400mm x1
