ALAVO DOC M WC PACK – BACK TO WALL

D10007-1000-RB

D10007-1000-RB

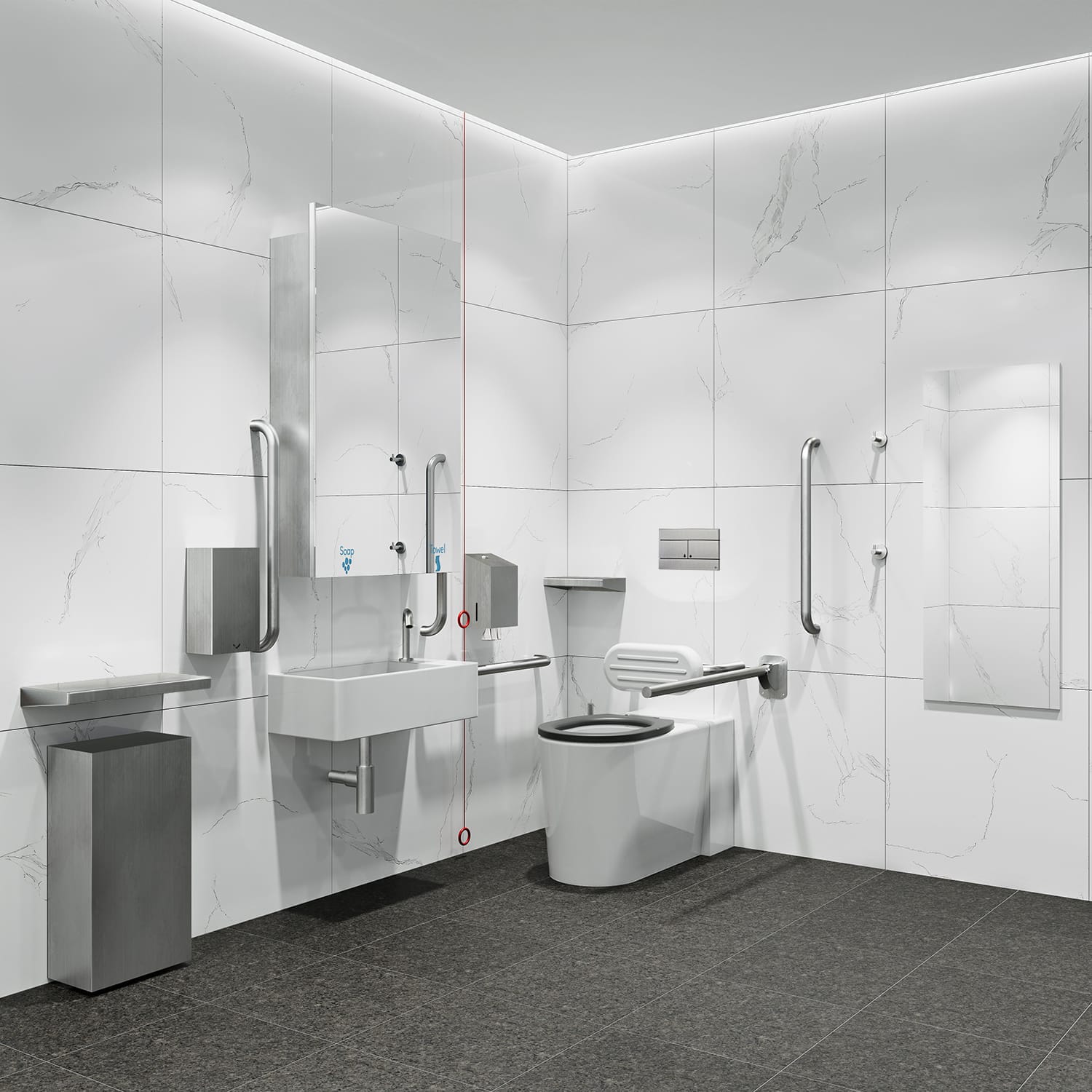

Accessible ALAVO - Back to wall WC
Formerly AA1000
Full set of products and components to install an accessible toilet and washroom
Designed in conjunction with wheelchair users, access specialists and BS8300
Coating Options: Satin brushed stainless steel. Powder coating black or Ceramic coating
Options: Right hand or left hand wheelchair transfer
DOC M compliant

Accessible ALAVO ensures consistency of design between the accessible washroom and other washrooms
Includes the Alavo behind mirror handwash system, with all the incorporated benefits
Wall mounted and Close coupled WCs are alaso available on request
White toilet seat also available as an option - please contact the team for more information
To assist blind or partially sighted persons in navigating the washroom there should be a contrast difference of 30 between the LRV (Light Reflective Value) of fixtures/fittings and surrounding surfaces as well as between floors, walls, doors and ceilings. Stainless steel fittings have an average LRV rating of between 39 and 45. Contact the Dolphin Technical Team for assistance.

D10007-1000-RB Pack contains:

AA0100 ALAVO Unit (with integrated touch free soap dispenser and paper towel dispenser) x1
DS213.150.150.1 infrared tap (preinstalled TMV in the AA0100) x1
AA0200 Basin x1
DB784.1 Waste Trap x1
DB794S Waste Grate x1
BC4302 Toilet Tissue Dispenser x1
BC9831SS Toilet Brush x1
BC725 Coat Hooks x2
BC2008 Hand Dryer x1
BC951 Waste Bin x1
BC754 400mm shelf x1
BC751 200mm shelf x1
BC5083-121 Alarm Pull Cord x1
BC5065-02 Grab Bar 600 mm x4
BC5065-05 Grab Bar 500 mm x1
BC5023-07SS Drop Down Hinged Support Rail x1
BC5064-08/BC5083-PAD-WH Back Rest x1
DB5510.M Mechanical Cistern x1
DB5560.M.1 Flush Plate x1
DB590 Toilet Pan x1
DB591-GRY Toilet Seat Ring - Grey Contrasting x1 (White WC seat available, but can cause noncompliance as it does not colour contrast with the pan)
BC5083-101 Mirror 1000mm x 400mm x 1

CODE OPTIONS:
