DOLPHIN ESSENTIALS DOC M WC PACK BACK TO WALL
D10013-1000-FB-01DOLPHIN ESSENTIALS DOC M WC PACK BACK TO WALL
D10013-1000-FB-01Details
- Back to wall WC
- Flanged
- Doc M toilet set
- Options: Right hand or left hand wheelchair transfer
- DOC M compliant
- Click here for close coupled option
- High quality satin stainless steel grab rails, manual tap and dispenser
- Special finishes: Ceramic, PPC in all RAL colours
- Complete set includes all of the items listed below to ensure compliance from specification to installation

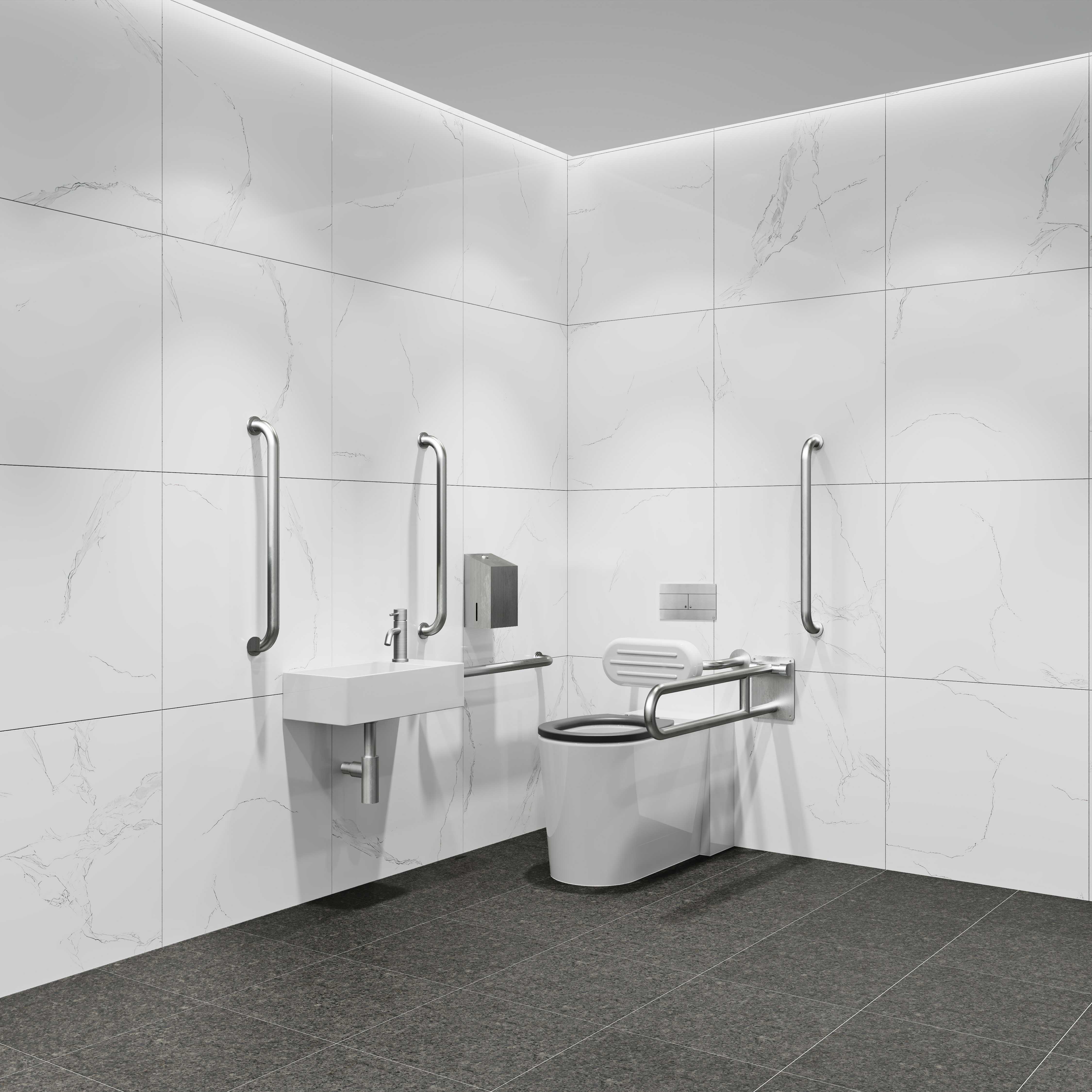

- All items of a co-ordinated design to achieve a consistent aesthetic look throughout the washroom
- Set is delivered in one package for easy installation
- White toilet seat also available as an option - please contact the team for more information
- To assist blind or partially sighted persons in navigating the washroom there should be a contrast difference of 30 between the LRV (Light Reflective Value) of fixtures/fittings and surrounding
surfaces as well as between floors, walls, doors and ceilings.
- Stainless steel fittings have an average LRV rating of between 39 and 45 - Contact the Dolphin Technical Team for assistance
Pack Includes:- AL0220 TMV3 Complete
- BC4302 Bulk Pack Dispenser - SBSS
- BC5083-05 500mm Grab Rail with Concealed Fixings - SBSS
- BC5083-02 600mm Grab Rail with Concealed Fixings - SBSS
- BC5083-06 800mm Hinged Rail with Friction Mechanism - SBSS
- BC5083-07 220mm WC Back Rest Rail with 50mm PU Pad - SBSS
- DB5510.M Dolphin Blue Cistern 126mm Mechanical - No Frame
- DB5560.M Dolphin Manual Flush Plate
- DB590 Access 750mm back to wall WC
- DB591-GRY Toilet Seat for Access 750mm back to wall WC
- DB785SS Blue Waste Trap - SBSS
- DB793S Blue Waste Drain - Slotted - SBCPB
- DC34.5025 Wall Hung WELL Standard Right/Left Hand Tap Hole Basin 50x25cm
- DB1650 Dolphin Blue Monoblock Mixer Tap - SBSS
