DDA Toilet KIT

DC3075DDA

DDA Toilet KIT

DC3075DDA

Details

  • Full set with all items included for a working WC
  • Electronic actuation flush

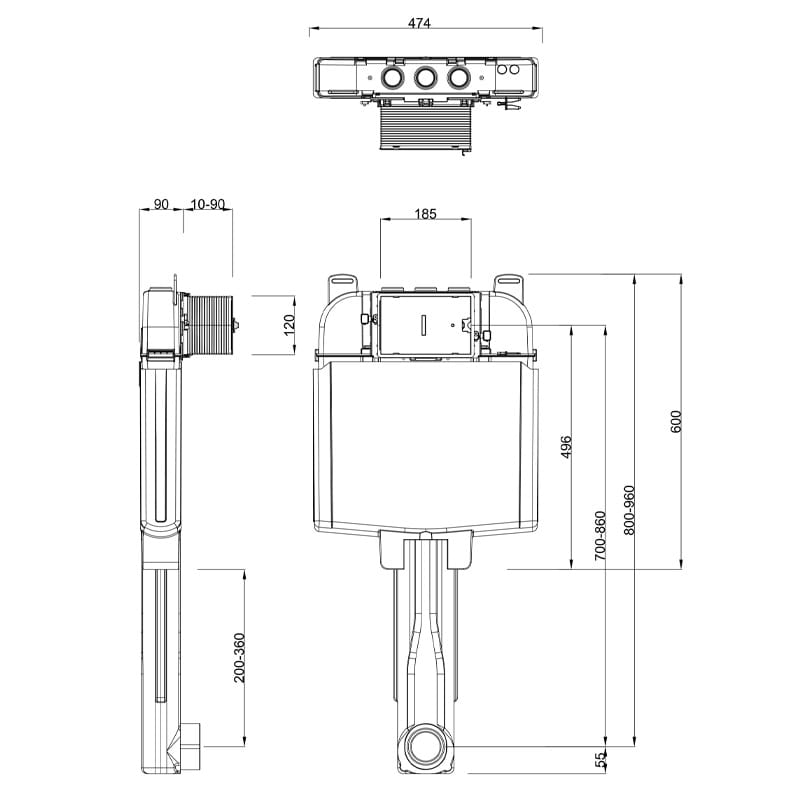

  • Flush mounted recessed back box designed to enable install from the front of wall - opening in the final wall finish should be cut to the size of the flush plate, not to the size of the cistern opening
  • Must be installed above the height of the opened toilet seat and seat cover to avoid false activation issues
  • Pan & cistern weight tested to 400KG
  • Working pressure: 0.1 to 16 bar
  • Sensor activated dual flush volumes of 4.5/3 litres
  • Designed to be hardwired into 240v circuit - no battery option available
  • Optional bluetooth connection to Dolphin gateway device (to take you to BMS) to provide setting possibilities, diagnosis and usage statistics
  • 80mm minimum wall build up required
  • WaterMark Approved
