DOLPHIN PANEL MOUNTED INFRARED FOAM SOAP DISPENSER
BCL632F
DOLPHIN PANEL MOUNTED INFRARED FOAM SOAP DISPENSER
BCL632F
Details
- Touch free foam soap dispenser
- Special Finishes: Ceramic, PVD, PPC in all RAL colours
- WELL compliant

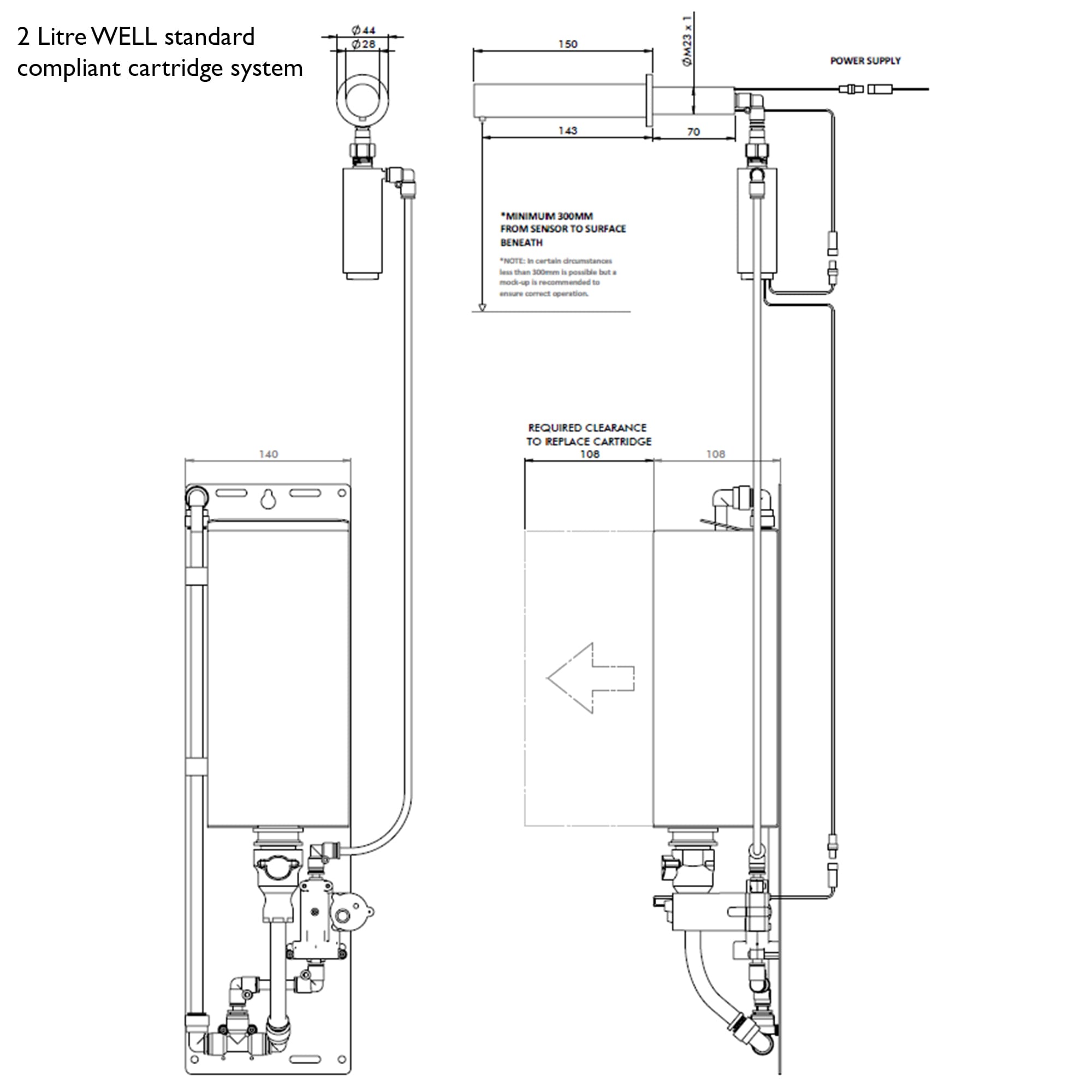

- Capacity: refillable 1 litre bottle, 2 litre cartridge, or multifeed system
- Integral peristaltic pump prevents backflow ensuring a germ free environment and, in conjunction with the touch free operation, eliminates the risks of contamination
- Soap and air settings can be adjusted to personalise soap ‘foamability’ via a remote control which easy to use and designed for the janitor or client to use (DB53). One of these is supplied FOC with every 6 dispensers or can be purchased separately.
- Sensor settings (range etc) can be adjusted with a separate remote control – this is a more complex unit and designed more for maintenance staff to use (DB07100014)

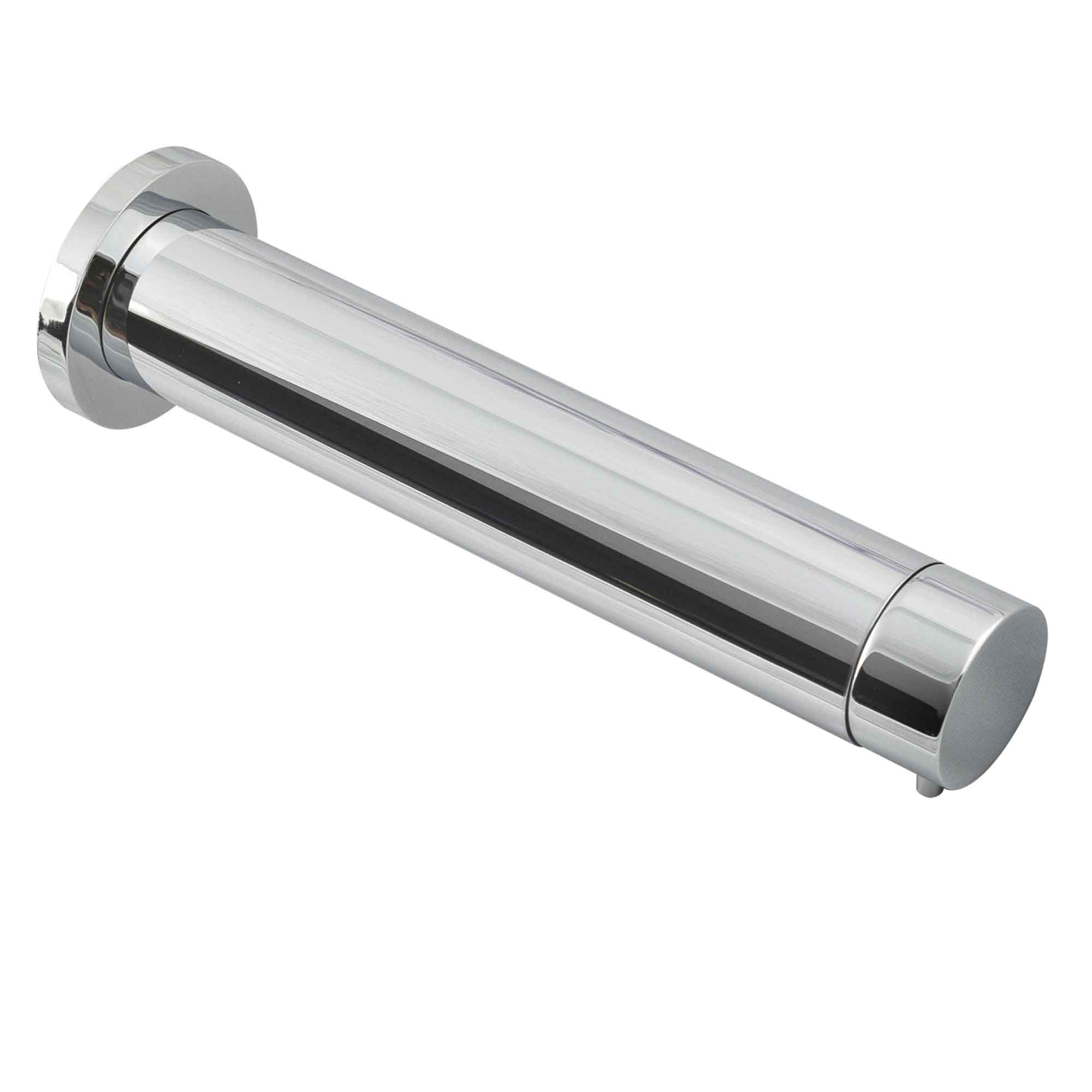

- Available in high quality polished chrome (BCL632FC) or brushed satin (BCL632FS-2) finishes on solid brass construction with other finishes available on request

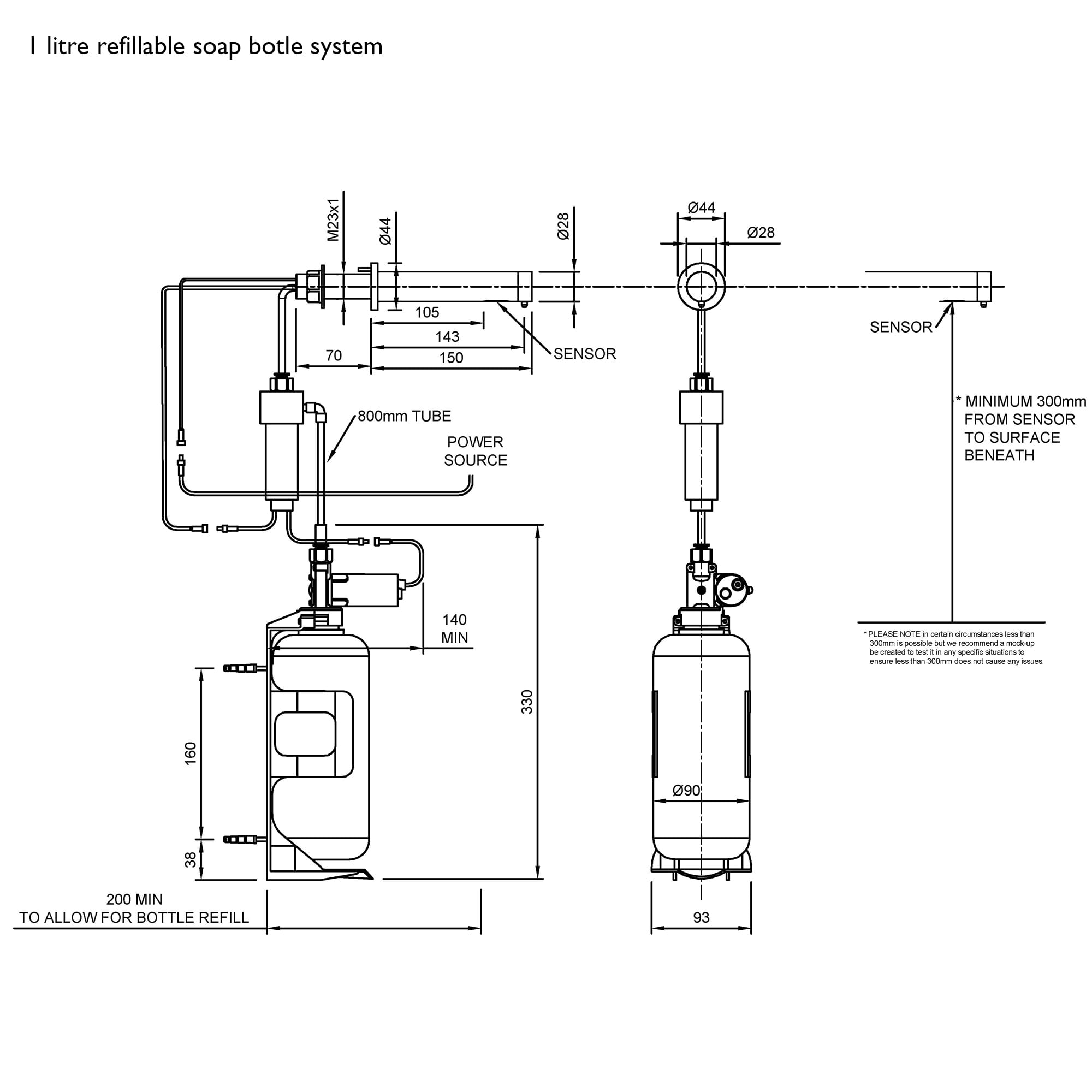

- Panel mounted it includes a 1 litre foam soap bottle, integral bottle support and fixing kit
- Designed to match Dolphin Blue DB400 and DB1400 series taps
- Compatible with the following multifeed systems:DP1900-MB, DP1900-MA, BC6300 and DS800
- Important: please contact Dolphin Technical Helpline 01424 202224 /consult fitting instructions for design guidance
- Power connections: soap dispenser: female / power source: male
- Draws maximum current of 0.5A at sensor activation 2 year guarantee
- Powered by 12v Transformer; a 3pin version is supplied complete with each dispenser
- Convenient, quick and Highly economical - Foam soaps use less product with the same result.
- A big improvement in soap dispensing foaming soap drastically reduces soap consumption when compared to standard liquid soap
- Extra tubing is available separately - BC07240052
